Description

Model	1 Wash Bay	2 Wash Bays	3 Wash Bays
Order N°	500	501	506
Water consumption	660 l/h	660 l/h	660 l/h
Operating pressure	130 bar / 13 MPa	130 bar / 13 MPa	130 bar / 13 MPa
Heating energy	gas/diesel/el. heated	gas/diesel/el. heated	gas/diesel/el. heated
Hot water output temperature	60 °C	60 °C	60 °C
Heating power	35 kW / 18 kW, depending on el. heating power	50 kW / 24 kW, depending on el. heating power	74 kW / 36 kW, depending on el. heating power
Water softening capacity	120 m³/°dH	120 m³/°dH	120 m³/°dH
Permeate capacity R/O system	7200 l/d	7200 l/d	7200 l/d
Content osmosis tank	800 l	800 l	800 l
Content micro powder dosing unit	35 l	35 l	35 l
Content UltraProtection®	10 l	10 l	10 l
Content SuperFinish®	10 l	10 l	10 l
Power type	3 Ph / 400 V / 50 Hz	3 Ph / 400 V / 50 Hz	3 Ph / 400 V / 50 Hz
Power intake	6,8 kW / 24,8 kW (depending on el. heating power)	9 kW / 33 kW (depending on el. heating power)	9 kW / 33 kW (depending on el. heating power)
Dimensions (L x W x H)	472 x 80 x 209 cm	472 x 80 x 209 cm	472 x 80 x 209 cm
Weight	1360 kg	1450 kg	1540 kg

Washing and Care Programs

EHRLE offers 10 combinations of washing and care programs. For this product the following programs are available:

System variant 1

• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/1/1 System

1 Washing- and Care product on cleaning program, 1 water and chemical supply, 1 swivelling boom with lance

---

System variant 2

• Cleaning with APPMP and low pressure lance
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/1/1 (Low Pressure) System

1 Washing- and Care product on (pre-)cleaning program, 1 water and chemical supply, 1 swivelling boom with lance

---

System variant 3 SE

• Cleaning with APPMP and high pressure lance and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/1/2 System (Suitable for warmer climates)

1 Washing- and Care product on cleaning program, 1 water and chemical supply, 2 swivelling boom with lance and foam brush

---

System variant 4

• Precleaning with SoftFoam lance
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/2/2 System

2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lances

---

System variant 5

• Precleaning with SoftFoam brush
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/2/2 System

2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush

---

System variant 6

• Cleaning with APPMP and high pressure lance
• Cleaning with APPMP and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/2/2 System

1 Washing- and Care product on cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush

---

System variant 7

• Vorreinigen mit APPMP Niederdruck und Strahlrohr
• Reinigen mit APPMP und Strahlrohr
• Reinigen mit APPMP und Schaumbürste
• Klarspülen mit Strahlrohr
• Lackschutz mit UltraProtection und Strahlrohr
• Hochglanz mit SuperFinish und Strahlrohr

1/2/2 (Niederdruck) System

1 Wasch-/ Pflegemittel bei Programm (Vor-)Reinigen, 2 Zuleitungen, 2 Deckenkreisel mit Strahlrohr und Bürste

---

SafePillar with System variant 08

System variant 8 SE

• Precleaning with SoftFoam lance
• Cleaning with APPMP and high pressure lance and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/2/3 System (Suitable for warmer climates)

2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and SoftFoam lance.

---

The entire technical equipment is located between the wash bays. Different self-service carwash system variations can be designed by combining several CarWash technology and AquaClean modules. The advantage of this system is the space-saving arrangement of the self-service wash bays. The space for a CarWash technology container is not required. This arrangement is particularly preferred for tight or angular plots.

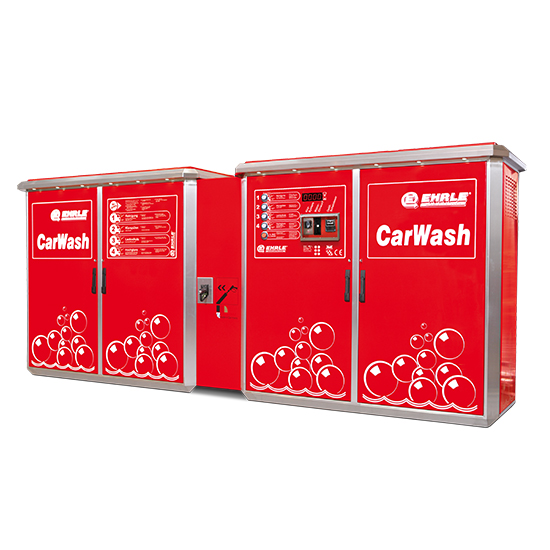

The CarWash outdoor modules consist of a technology pump module with micropowder dosing and an AquaClean module for washing water treatment. The technology pump module is available in versions with 2 or 3 wash bays. A double softening system is installed in the AquaClean module, which supplies a constant water quality even with 24 hour operation. The osmosis system ensures sufficient osmosis water and a smudge-free drying result. The CarWash Outdoor series of models is oil or gas-heated or supplied with electric heating. The modules can be expanded in the modular system so that any number of self-service wash bays can be realised. If you would like to extend your self-service wash bays later on, this is no problem with CarWash Outdoor modules.
