Description

Model	LCE Gas 20-85 kW	LCE Gas 30-160 kW	LCE Oil 50-74 kW
Order N°	62200000000002	60000000000451	60000000000003
Heating energy	Gas	Gas	Oil
Hot water	60 °C	60 °C	60 °C
Burner power	20-85 kW	30-160 kW	50-74 kW
Efficiency level	up to 106 %	up to 106 %
Power Type	3 Ph/400 V/50 Hz	3 Ph/400 V/50 Hz	3 Ph/400 V/50 Hz
Connection Power	0,75 kW	1,0 kW	1,0 kW
Dimensions L x W x H	74 x 100 x 216 cm	200 x 100 x 150 cm	74 x 100 x 216 cm
Weight	230 kg	250 kg	270 kg

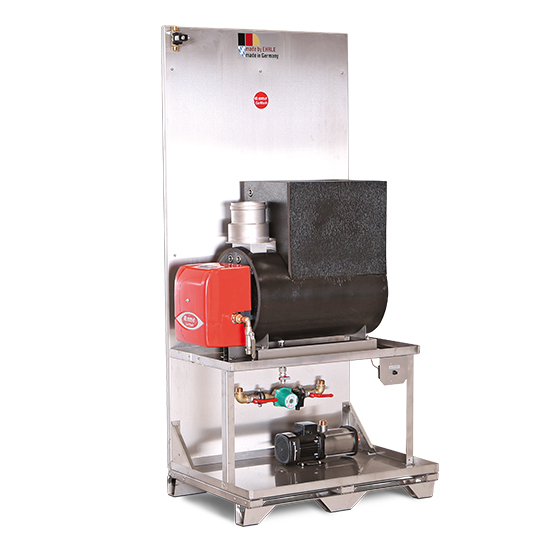

LCE Gas 20-85 kW

The basic hot water heating module from EHRLE with stainless steel boiler can supply up to 4 self-service wash bays with hot washing water.

The modulating gas burner is combined with the latest condensing technology for maximum efficiency and energy savings.

---

LCE Gas 30-160 kW

The power hot water heating module from EHRLE with stainless steel boiler can supply up to 8 self-service wash bays with hot washing water.

The modulating gas burner is combined with the latest condensing technology for maximum efficiency and energy savings. The integrated booster pump supplies the wash bays with hot washing water as required. A second service water inline pump feeds the floor heating heat exchanger.

---

LCE Oil 50-74 kW

As a hot water heating module with oil firing, EHRLE supplies the tried-and-tested heating coil technology made of stainless steel with a highly efficient triple line combustion chamber.

The washing water heated this way is kept in a depressurized, insulated boiler.
