Description

Order N°	516
Water consumption	660 l/h
Operating pressure	130 bar / 13 MPa
Content micro powder dosing unit	18 l
Content UltraProtection®	10 l
Content SuperFinish®	10 l
Power type	3 Ph / 400 V / 50 Hz
Power intake	2 kW
Dimensions (L x W x H)	74 x 60 x 216 cm
Weight	195 kg

Washing and Care Programs

EHRLE offers 10 combinations of washing and care programs. For this product the following programs are available:

System variant 1

• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/1/1 System

1 Washing- and Care product on cleaning program, 1 water and chemical supply, 1 swivelling boom with lance

---

System variant 2

• Cleaning with APPMP and low pressure lance
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/1/1 (Low Pressure) System

1 Washing- and Care product on (pre-)cleaning program, 1 water and chemical supply, 1 swivelling boom with lance

---

System variant 3 SE

• Cleaning with APPMP and high pressure lance and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/1/2 System (Suitable for warmer climates)

1 Washing- and Care product on cleaning program, 1 water and chemical supply, 2 swivelling boom with lance and foam brush

---

System variant 4

• Precleaning with SoftFoam lance
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/2/2 System

2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lances

---

System variant 5

• Precleaning with SoftFoam brush
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/2/2 System

2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush

---

System variant 6

• Cleaning with APPMP and high pressure lance
• Cleaning with APPMP and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

1/2/2 System

1 Washing- and Care product on cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush

---

System variant 7

• Vorreinigen mit APPMP Niederdruck und Strahlrohr
• Reinigen mit APPMP und Strahlrohr
• Reinigen mit APPMP und Schaumbürste
• Klarspülen mit Strahlrohr
• Lackschutz mit UltraProtection und Strahlrohr
• Hochglanz mit SuperFinish und Strahlrohr

1/2/2 (Niederdruck) System

1 Wasch-/ Pflegemittel bei Programm (Vor-)Reinigen, 2 Zuleitungen, 2 Deckenkreisel mit Strahlrohr und Bürste

---

SafePillar with System variant 08

System variant 8 SE

• Precleaning with SoftFoam lance
• Cleaning with APPMP and high pressure lance and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/2/3 System (Suitable for warmer climates)

2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and SoftFoam lance.

---

System variant 9

• Precleaning with SoftFoam lance
• Cleaning with APPMP and high pressure lance
• Cleaning with APPMP and foam brush
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/3/3 System

2 Washing- and Care products on (pre-)cleaning program, 3 water and chemical supplies, 3 swivelling boom with lance, SoftFoam lance and foam brush

---

System variant 10

• Precleaning with SoftFoam lance
• Precleaning with SoftFoam brush
• Cleaning with APPMP and high pressure lance
• Rinsing with high pressure lance
• Protection with UltraProtection and high pressure lance
• High Gloss with SuperFinish and high pressure lance

2/3/3 System

2 Washing- and Care products on (pre-)cleaning program, 3 water and chemical supplies, 3 swivelling boom with lance, SoftFoam lance and SoftFoam brush.

---

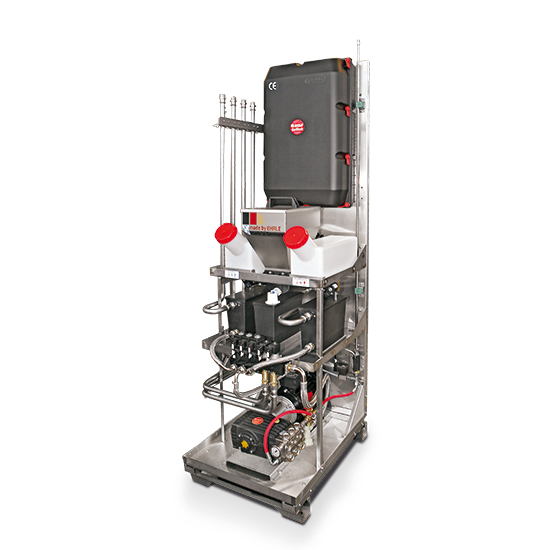

The individual ModulLine high-pressure units are simply installed in series in the planned technology space and connected with the media via a pipe distribution system.

The hot water heating module, storage tank charging module and foam generator can be arranged in the same system setup.

All system modules are standardised with respect to the installation dimensions and therefore also match up visually – your technology space is setup professionally.

Another application area for the EHRLE ModulLine system is redevelopment of self-service wash systems.

Investors can decide for themselves which system components should be replaced and which should be kept. The EHRLE ModulLine system can easily be expanded at any time.

All the modules are linked with each other via an Ethernet/Lan connection and provided with information via a main control. A serial connection based on RS485 is setup between the wash bays and the individual technology modules.

Condition monitoring 1, included in the scope of supply, offers access to all pump modules in connection with wash turnover analysis for the last 24 hours, week, month, year and total via a TFT-Touch-Screen. This system leaves nothing to be desired in terms of controlling management.
