AS5160T

Call for Price

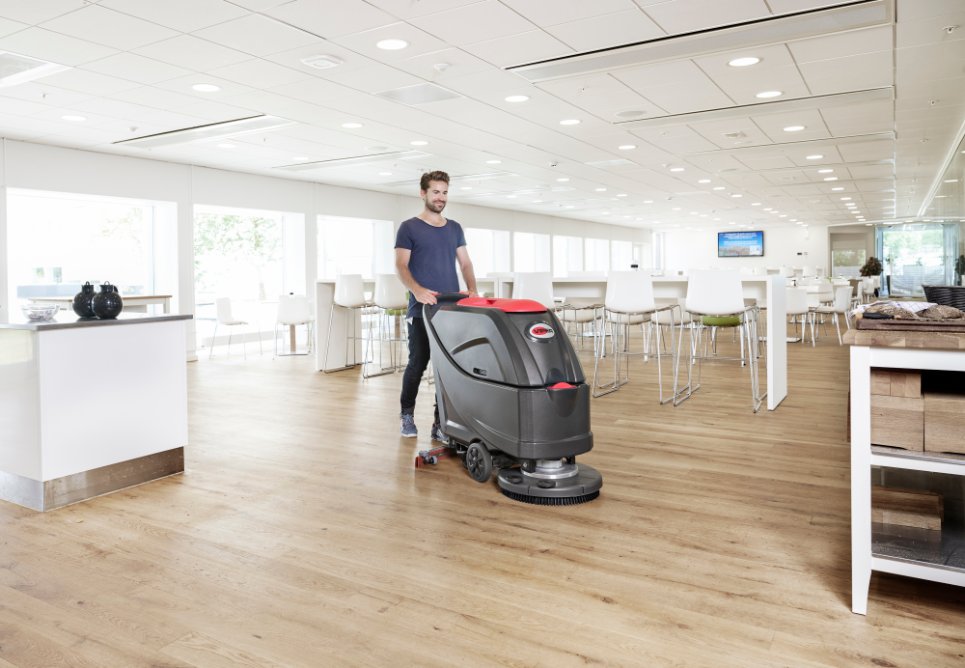

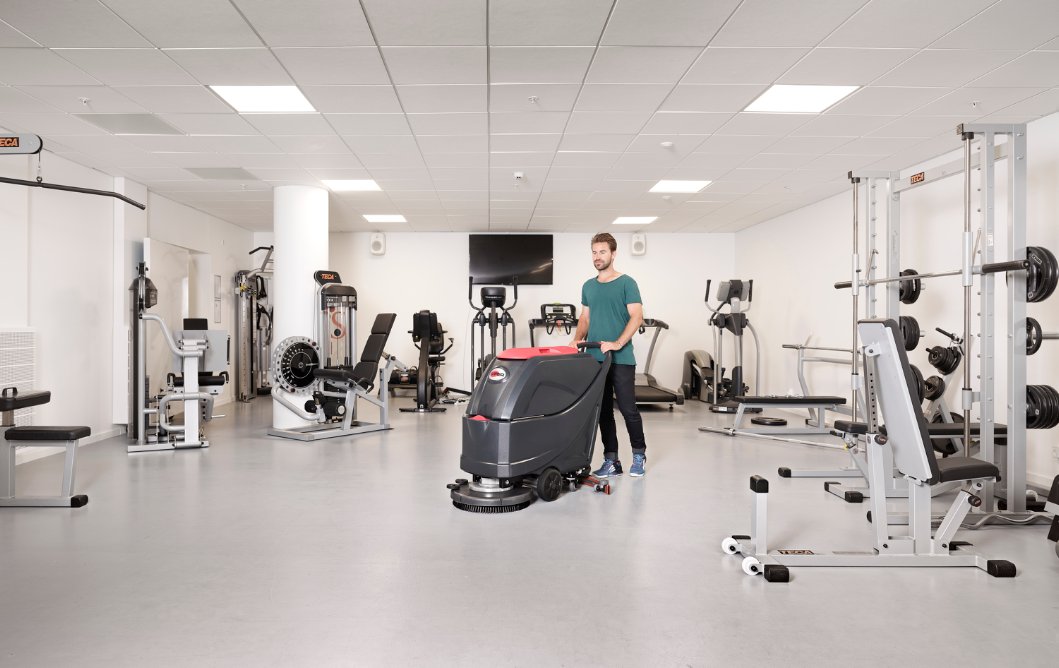

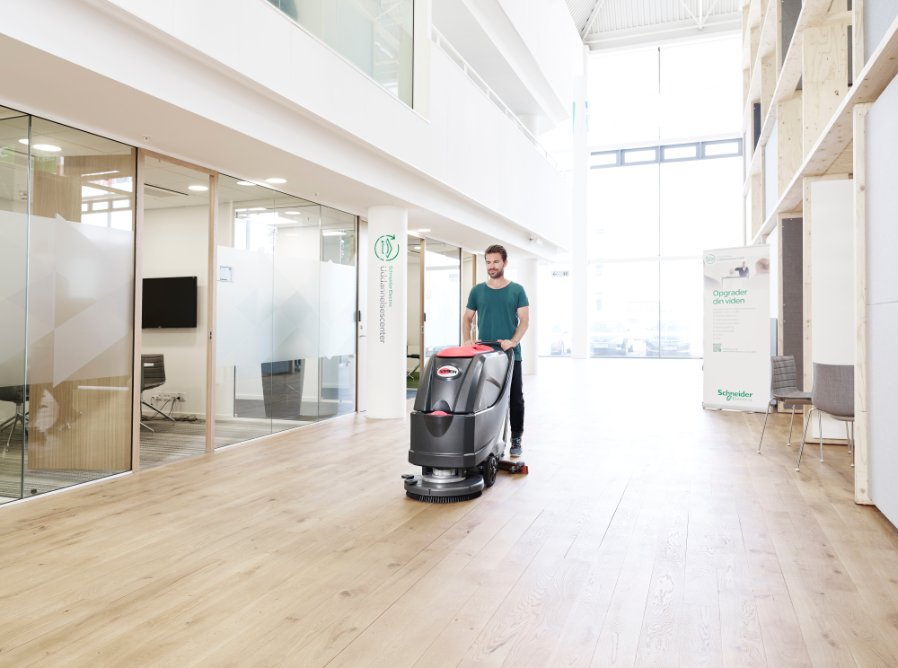

The Viper AS5160 is a highly productive walk-behind scrubber dryer with high battery endurance and tank capacity to clean for hours. Being easy and comfortable to use with their ergonomic design, these robust machines are ready for an in-depth performance on indoor surfaces.

Ideal for cleaning in hotels and restaurants, bus and train stations, factories, supermarkets, shopping malls, hospitals, schools, and other institutions.

With a working width of 51 cm and a powerful 450 W brush motor, these machines will get the job done with both speed and ease. Especially if you go for the model AS5160 T – for Traction – equipped with a 150 W drive motor bringing the scrubber dryer forward.

The machines are well-balanced and easy to maneuver thanks to their big wheels and strong casters. Hour meter and water level indicator will keep you updated, and the speed reducing gear drive system of the Traction version ensure smooth operation with a minimum of effort.

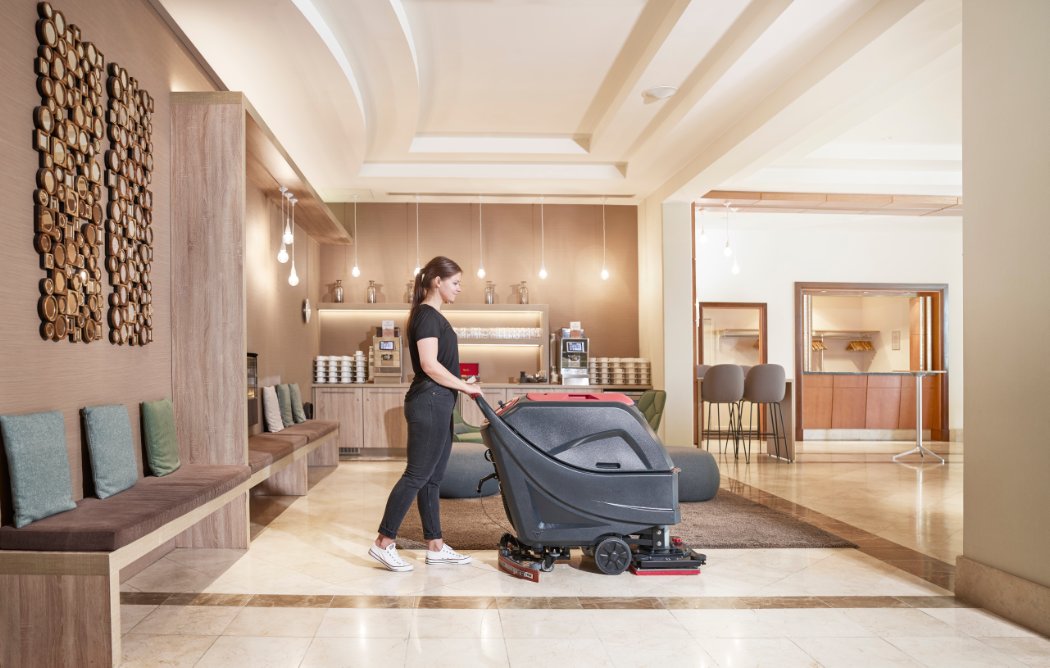

For intensive cleaning or maintaining large coated floor areas the AS5160TO with orbital scrub deck ensures multidirectional cleaning performance with low solution and detergent consumption and the square deck gives easy to access corners.

    • Orbital version saving water and detergent equipped
      with traction motor and automatic raise and lowering of the scrub deck
    • AS5160T – Traction-model: 150W drive motor
    • Easy to maneuver and transport: Big wheels and strong caters, making the machine well-balanced
    • Easy and convenient operation: 2 pcs safety switches
    • Control panel with intuitive display and buttons
    • Productive: Working width 51 cm
    • Brush and pad driver can be installed/un-installed automatically
    • Hour meter: Check how many hours the machine has been running
    • Water level indicator with volume visible on the tank
    • High capacity for increased productivity: 61-liter water tank/ 61-liter recovery tank
    • Robust and solid: Steady chassis system and rotationally molded tanks
    • Reliable: Heavy duty 79 cm aluminum squeegee
    • Accessories: Brush, pad holder, batteries 12V x2 and onboard charger
    • Optional brush skirt kit prevents the machine from splashing water splashing water

Description

Selected ProductAS5160T-EU SCRUBBER 20IN 60L24V TRACTION
Product detailsProduct no: 50000403
Brush speed (rpm)150
Shipping weight (kg)183
Brush pressure (kg)23
Max. climbing rate (%)2%
Brush/pad diameter (mm)510
Net weight (kg)93
Sound pressure level (dB(A))69
Dimensions, L x W x H (mm)1370x600x1220
Water flow (l/m)0-2.4L/min
Working speed (km/h)0-4.5
Squeegee width (mm)790
Vacuum motor power (W)350
Traction motor power (W)150
Brush motor (W)450
Vacuum (mm H2O)1200
Battery compartment size (L x W x H) (mm)350x350x300
Battery type2x12V 100Ah/C20 AGM
Gross vehicle weight (gvw) (kg222.8
Solution/recovery tank capacity61/61L
Battery voltage (V)24
Hour Meterx
Water level indicatorx
Battery versionx
Recovery emptying hosesx
Traction drivex
Orbital Scrubbingx
