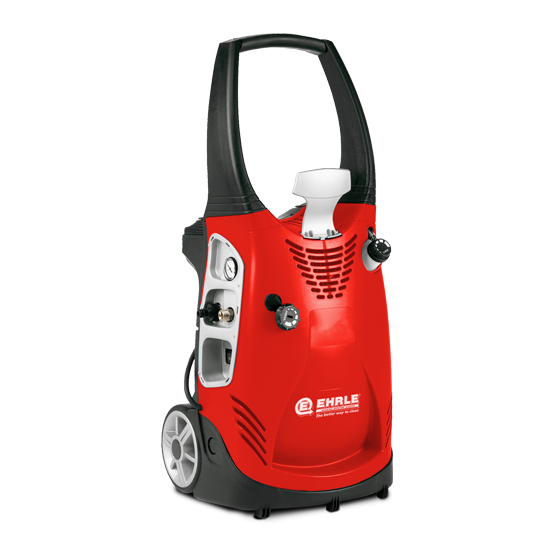

Ehrle – KD523
Call for Price
Mobile cold water high pressure cleaner, designed for continuous professional use.
Models
- KD523 (Standard/Premium)
Standard Equipment
Standard
- High pressure hose 10 m, DN06 – 250 bar
- Trigger gun with swivel
- Spray lance 900 mm with vario nozzle
- Stainless steel jet nozzle 25°
- 2 l cleaning detergent tank
- Detergent supply c/w low-pressure injector and metering valve
Premium
- Hose reel
- High pressure hose 10 m, DN06 – 250 bar
- Trigger gun with swivel
- Spray lance 900 mm with vario nozzle
- Stainless steel jet nozzle 25°
- 2 l cleaning detergent tank
- Detergent supply c/w low-pressure injector and metering valve
- Description
Description
| Model | KD523-Standard | KD523-Premium |
|---|---|---|
| Order N° | 202523 | 212523 |
| Voltage | 1 / 230 V / 50 Hz | 1 / 230 V / 50 Hz |
| Operating pressure | 30-130 bar / 3-13 MPa | 30-130 bar / 3-13 MPa |
| Max. Pressure | 150 bar | 150 bar |
| Water output | 300-600 l/h | 300-600 l/h |
| Max. inlet temperature | 45 °C | 45 °C |
| Nozzle size | 040 | 040 |
| Pump speed | 1400 rpm | 1400 rpm |
| Power intake | 2.6 kW / 9.0 A | 2.6 kW / 9.0 A |
| Electrical protection | 16 A slow-blowing | 16 A slow-blowing |
| Weight | 34 kg | 36 kg |
| Dimensions (L x W x H) | 380 x 380 x 900 mm | 390 x 380 x 900 mm |
- Self-Supporting, robust, impact-resistant device cover made of ABS
- Triplex piston pump with brass pump head, high-performance ceramic piston, stainless steel valves
- Start-stop system
- Unloader safety valve c/w infinitely variable pressure and quantity regulation
- 2 large wheels and rubber support
- Storage possibility for all accessories
- Robust ON/OFF switch
- 5 m connection cable
