Ehrle – KD 1140-F

Call for Price

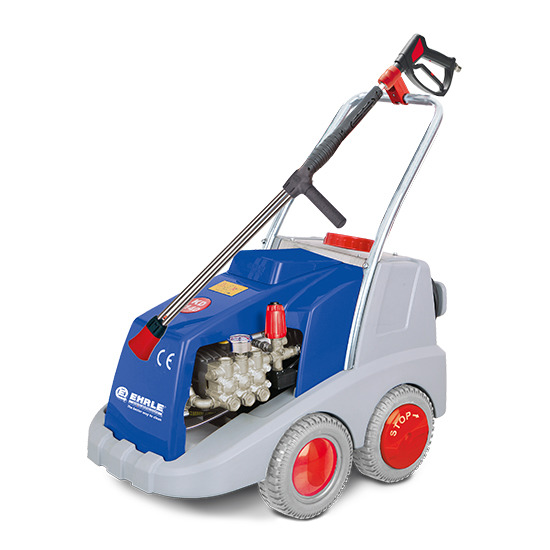

Mobile cold water high pressure cleaners, designed for continuous professional use, 16 – 30 l/min.

Models

  • KD1140 (Standard/Premium)
  • KD1340 (Standard/Premium)
  • KD1840 (Premium)
  • KD1540 (Premium)
  • KD2040 (Premium)
  • KD1140-F Food appliance (Standard/Premium)

Standard Equipment

Standard

  • 10 m High Pressure Hose
  • Trigger gun with swivel
  • Spray Lance 900 mm c/w vario nozzle
  • Stainless steel jet nozzle 25°
  • 25 l cleaning detergent tank
  • Detergent supply c/w low pressure
  • Injector and metering valve

Premium

  • Hose reel
  • 15 m high pressure hose DN06 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless Steel Jet Nozzle 25°
  • Spray lance 900 mm c/w rotary nozzle
  • 17 l water storage tank
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve

Description

Mobile cold water high pressure cleaners, designed for continuous professional use, 16 – 30 l / min.

Model KD1140 KD1340 KD1840 KD1540 KD2040 KD1140-F
Order N° 551001 (Standard) 551002 (Premium) 552001 (Standard) 552002 (Premium) 563002 (Premium) 553002 (Premium) 554002 (Premium) 551003 (Standard) 551004 (Premium)
Voltage 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz
Operating pressure 30-250 bar / 3-25 MPa 30-170 bar / 3-17 MPa 30-100 bar / 3-10 MPa 30-280 bar / 3-28 MPa 30-200 bar / 3-20 MPa 30-180 bar / 3-18 MPa
Max. Pressure 270 bar / 27 MPa 190 bar / 19 MPa 120 bar / 12 MPa 310 bar / 31 MPa 220 bar / 22 MPa 200 bar / 20 MPa
Water Output 300 – 1000 l/h 300 – 1300 l/h 300 – 1800 l/h 300 – 1500 l/h 300 – 1800 l/h 300 – 1000 l/h
Max. Inlet temperature 45 °C 45 °C 45 °C 45 °C 45 °C 80 °C
Nozzle size 040 070 150 065 100 050
Pump Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm 1400 rpm 1400 rpm
High Pressure Hose DN08 – 315 bar DN08 – 315 bar DN10 – 315 bar DN08 – 315 bar DN10 – 315 bar DN08 – 315 bar
Connected load 7.4 kW / 13.1 A 7.4 kW / 13.1 A 7.4 kW / 13.1 A 13.8 kW / 24 A 13.8 kW / 24 A 6.9 kW / 12.5 A
Electrical Protection 3 x 16 A slow-blowing 3 x 16 A slow-blowing 3 x 16 A slow-blowing 3 x 30 A slow-blowing 3 x 30 A slow-blowing 3 x 16 A slow-blowing
Weight 89 kg (Standard) 97 kg (Premium) 89 kg (Standard) 97 kg (Premium) 105 kg (Premium) 127 kg (Premium) 131 kg (Premium) 89 kg (Standard) 97 kg (Premium)
Dimensions (L x W x H) 980 x 620 x 1000 mm (Standard) 1020 x 620 x 1000 mm (Premium) 980 x 620 x 1000 mm (Standard) 1020 x 620 x 1000 mm (Premium) 1020 x 620 x 1000 mm (Premium) 1020 x 620 x 1000 mm (Premium) 1020 x 620 x 1000 mm (Premium) 980 x 620 x 1000 mm (Standard) 1020 x 620 x 1000 mm (Premium)
