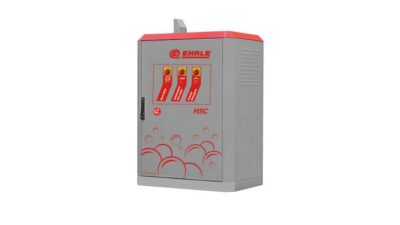

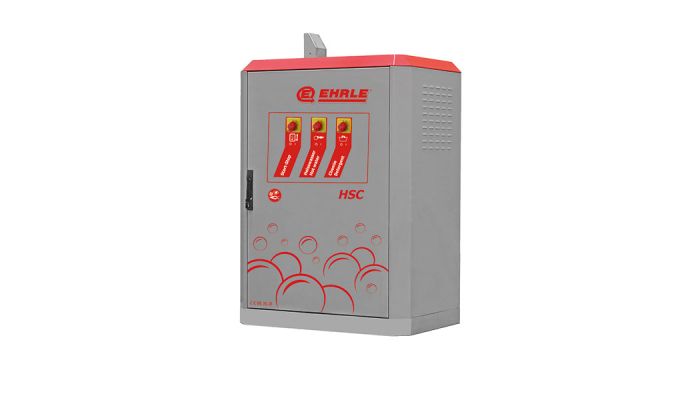

Stationary hot water high pressure cleaners, for professional users, oil, gas or electrically heated, for inside and outside.

Models

  • HSC823 (-INOX)
  • HSC1140 (-INOX)
  • HSC1240 (-INOX)
  • HSC840-INOX 24 kW
  • HSC1140-INOX 30 kW
  • HSC1140-INOX Gas

Standard Equipment

  • Etronic II controls
  • 10 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve
  • INOX versions: stainless steel (food safe)
Categories: , , , ,

Description

Stationary hot water high pressure cleaners, for professional users, oil, gas or electrically heated, for inside and outside.

Type HSC823 oil heated HSC1140 oil heated HSC1240 oil heated HSC840-INOX 24kW electrically heated HSC1140-INOX 30kW electrically heated HSC1140-INOX Gas gas heated
Order N° 52601 526010 (-INOX) 52702 527 (-INOX) 52801 528 (-INOX) 531 533 52701
Voltage 1 / 230 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz
Operating pressure 30-140 bar / 3-14 MPa 30-180 bar / 3-18 MPa 30-160 bar / 3-16 MPa 30-130 bar / 3-13 MPa 30-180 bar / 3-18 MPa 30-180 bar / 3-18 MPa
Max. pressure 150 bar / 15 MPa 200 bar / 20 MPa 180 bar / 18 MPa 150 bar / 15 MPa 200 bar / 20 MPa 200 bar / 20 MPa
Water Output 300 – 720 l/h 300 – 1000 l/h 300 – 1200 l/h 300 – 720 l/h 300 – 1000 l/h 300 – 1000 l/h
Nozzle size 045 050 070 045 050 050
Heating power 24 kW 30 kW 50 kW
Hot water capacity 30-98 °C 30-98 °C 30-98 °C 30-80 °C 30-80 °C 30-70 °C
Pump Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Connected load 3.0 kW / 13 A 6.5 kW / 11.7 A 7.6 kW / 14.1 A 28.8 kW / 44.2 A 36.5 kW / 57.0 A 6.5 kW / 11.7 A
Weight 301 kg/300 kg (INOX) 301 kg/300 kg (INOX) 301 kg/300 kg (INOX) 264 kg 292 kg 313 kg
Dimensions (L x W x H) 1220 x 755 x 1625 mm 1220 x 755 x 1625 mm 1220 x 755 x 1625 mm 1220 x 755 x 1625 mm 1220 x 755 x 1625 mm 1220 x 755 x 1625 mm



  • Self-supporting, robust, device chassis made from galvanized steel and powder-coated (Option INOX: device chassis made out of stainless steel), suitable for floor installation
  • HSC840-INOX 24kW, HSC1140-INOX 30kW/Gas: Stainless steel hot water boiler with 65 l capacity with pre-heating and buffer storage for immediate hot water use and hot water preparation during stand-by operation
  • Triplex piston pump with brass pump head (HSC840-INOX 24kW, HSC1140-INOX 30kW/Gas: chrome nickel pump head, hot water-resistant), nickel plated, high performance ceramic piston, stainless steel valves
  • Leakage return
  • HSC823, HSC1140, HSC1240: Etronic II controls: Start-stop system with switch-off delay, total-switch-off after 20 min, OPH counter with service information, optical flame monitoring with photoelectric cell and fault indicator light
  • HSC840-INOX 24kW, HSC1140-INOX 30kW/Gas: Etronic II controls: Start-stop system with switch-off delay, stand-by system for heating, OPH counter with service information, low water cut-off
  • HSC823, HSC1140, HSC 1240: 2-motors system (independent of the direction of rotation) separately for high pressure pump and heating
  • Unloader safety valve c/w infinitely variable pressure and quantity regulation
  • Separate space for 2 x 20 l cleaning detergent container c/w remote activation
  • integrated diesel tank 60l(HSC723, HSC1140, HSC1240)
  • 2 different operating control levels
  • 3 robust ON/OFF rotary switches for high pressure pump, heating and detergent
  • 7.5 m connection cable
