Ehrle – HD 623 UK Standard

Ehrle – HSC 1140-ST
Ehrle – HD 1140

£2,950.00

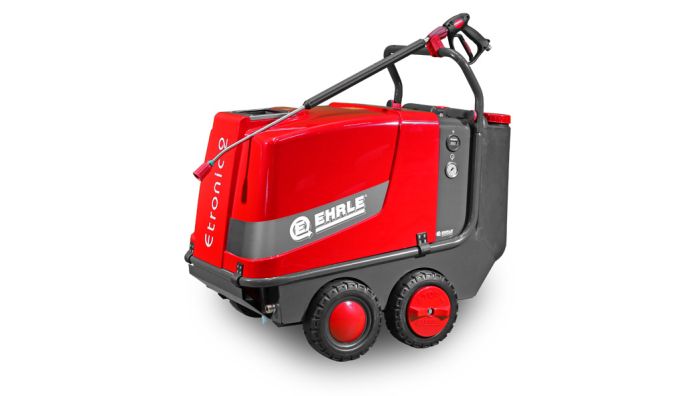

Mobile hot water high pressure cleaners, designed for continuous professional use, oil heated.

Models

  • HD623 UK (Standard/Premium)
  • HD640 (Standard/Premium)

Standard Equipment

Standard

  • Etronic I – Controls
  • 10 m high pressure hose – DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Water-supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve

Premium

  • Etronic I – Controls
  • Hose reel
  • 20 m high pressure hose – DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Spray lance 900 mm c/w rotary nozzle
  • Water-supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve
Categories: , ,

Description

Type HD623 UK HD640
Order N° 497000 (Standard)
497003 (Premium)		 412001 (Standard)
412002 (Premium)
Voltage 1 / 240 V / 50 Hz 3 / 400-415 V / 50 Hz
Operating pressure 30-135 bar / 3-13.5 MPa 30-180 bar / 3-18 MPa
Max. pressure 150 bar / 14 MPa 200 bar / 20 MPa
Water Output 300 – 600 l/h 300 – 600 l/h
Hot water capacity 30-98 °C 30-98 °C
Nozzle size 040 034
Pump Speed 1400 rpm 1400 rpm
Connected load 3.1 kW / 12.3 A 4.6 kW / 8.0 A
Electrical Protection 13 A slow-blowing 3 x 16 A slow-blowing
Weight 149 kg (Standard)/158 kg (Premium) 157 kg (Standard)/167 kg (Premium)
Dimensions without Hose Drum (L x W x H) 1070 x 735 x 1020 mm(Standard)
1070 x 735 x 1310 mm(Premium)		 1070 x 735 x 1020 mm(Standard)
1070 x 735 x 1310 mm(Premium)
  • Robust, corrosion-resistant, self-supporting device chassis
  • Impact-resistant device cover made of ABS
  • Triplex piston pump with brass pump head, nickel-plated, high-performance ceramic piston, stainless steel valves
  • Leakage return
  • Etronic I controls: Start-stop system with switch-off delay, total-switch-off after 20 min
  • 2-motors system (independent of the direction of rotation) separately for high pressure pump and heating
  • Unloader safety valve c/w infinitely variable pressure and quantity regulation
  • 4 large rubber wheels for rough terrain, with a patented wheel brake 2-way
  • Storage possibility for all accessories
  • Integrated Diesel tank 25 l
  • Integrated detergent tank 20 l
  • Rotary ON/OFF switch, robust and lockable
  • 7.5 m connection cable
  • Removable ergonomic drawbar
