Description

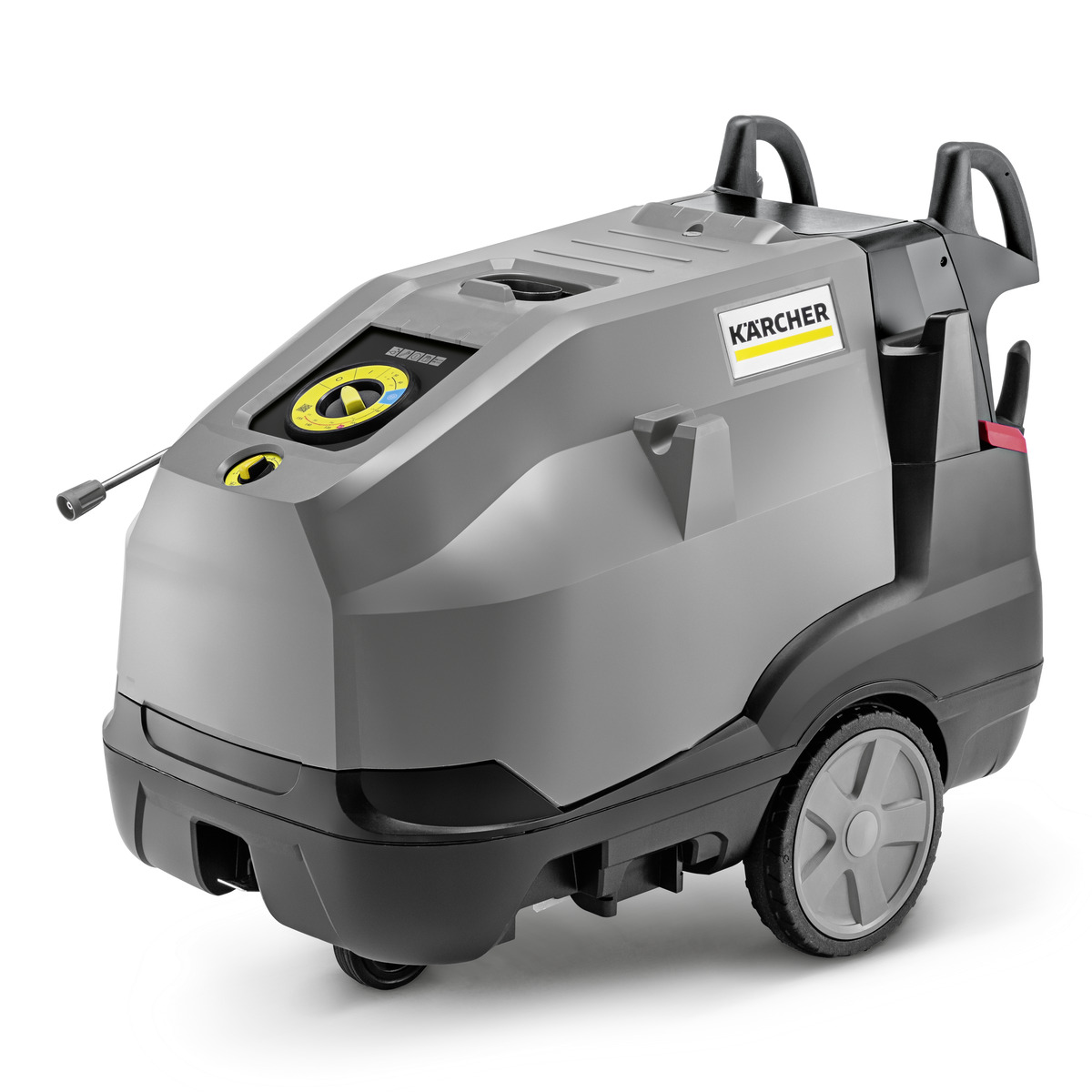

Kärcher’s HDS middle class hot water high-pressure cleaners reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The HDS 7/10-4 MX features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs. The MX model also featurs a 15m high pressure hose with integral hose reel, adding extra convenience and a wider cleaning radius.

Specifications

Technical data

Current type
(Ph)
1 – 240 – 50
Flow rate
(l/h)
350 – 700
Operating pressure
(bar/MPa)
30 – 100 / 3 – 10
Max. temperature
(°C)
80 – 155
Power rating
(kW)
3.4
Consumption fuel oil
(kg/h)
4.6
Power cable
(m)
5
Fuel tank
(l)
25
Weight
(kg)
154
Dimensions (L x W x H)
(mm)
1330 x 750 x 1060

Equipment

  • Trigger gun, EASY!Force Advanced
  • High-pressure hose, 20 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Steam nozzle
  • Integral high-pressure hose reel
  • Tanks for detergent, scale inhibitor and fuel can be filled from outside
  • Control panel with indicator lamps
  • Three piston axial pump, with ceramic piston
  • Pressure switch control
  • Electronic service control with LED display
  • Two detergent tanks
  • Dry running protection
