- Description
Description

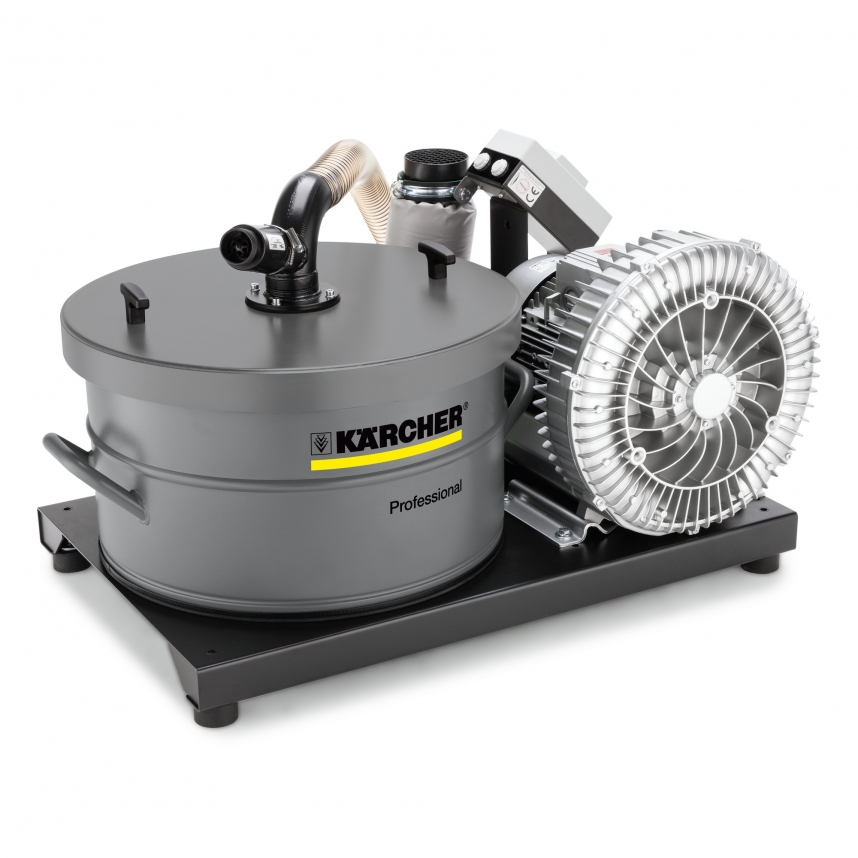

The IVR-B 50/30 build-in unit is a compact industrial vacuum with low construction height – ideal for direct installation in the metal and plastics processing industry. The machine features a powder-coated sheet steel container and benefits from particularly simple handling and maintenance. The durable side channel blower makes for continuous use without compromise, for example on production lines. Thanks to the cartridge filter, the machine is ideal for vacuuming shavings, metal waste and coarse dust. Noise stays at a comfortable level thanks to the integrated sound absorber.
Specifications
Technical data
| Power rating in operation (kW) |
3 |
| Air flow (l/s/m³/h) |
87.5 / 315 |
| Vacuum (mbar/kPa) |
260 / 26 |
| Container capacity (l) |
50 |
| Filter area (m²) |
0.7 |
| Main filter dust class | M |
| Sound level (dB(A)) |
70 |
| Nominal size | 52 |
| Accessory nominal size (/) |
52 / 42 |
| Weight (kg) |
79 |
| Dimensions (L x W x H) (mm) |
850 x 550 x 610 |
Equipment
- Accessories included with machine, No
- Container included, Yes
